ZTS1 42

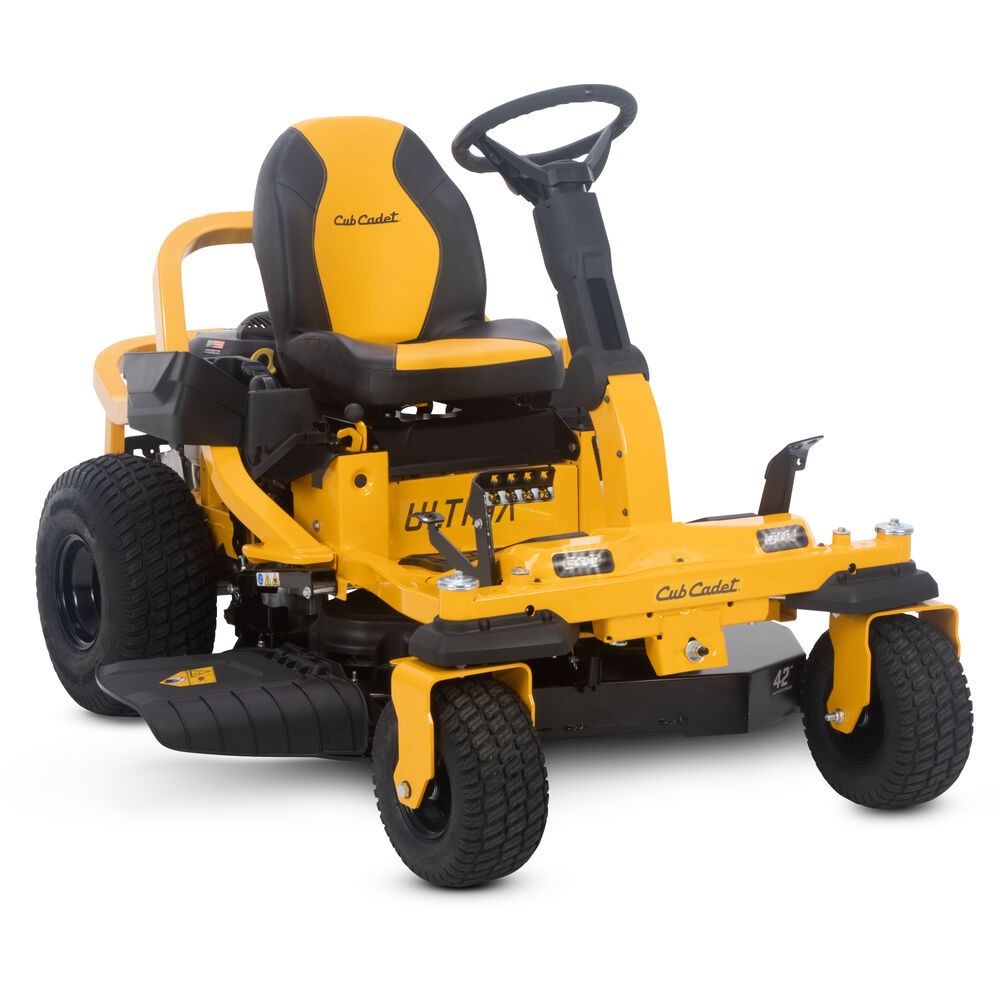

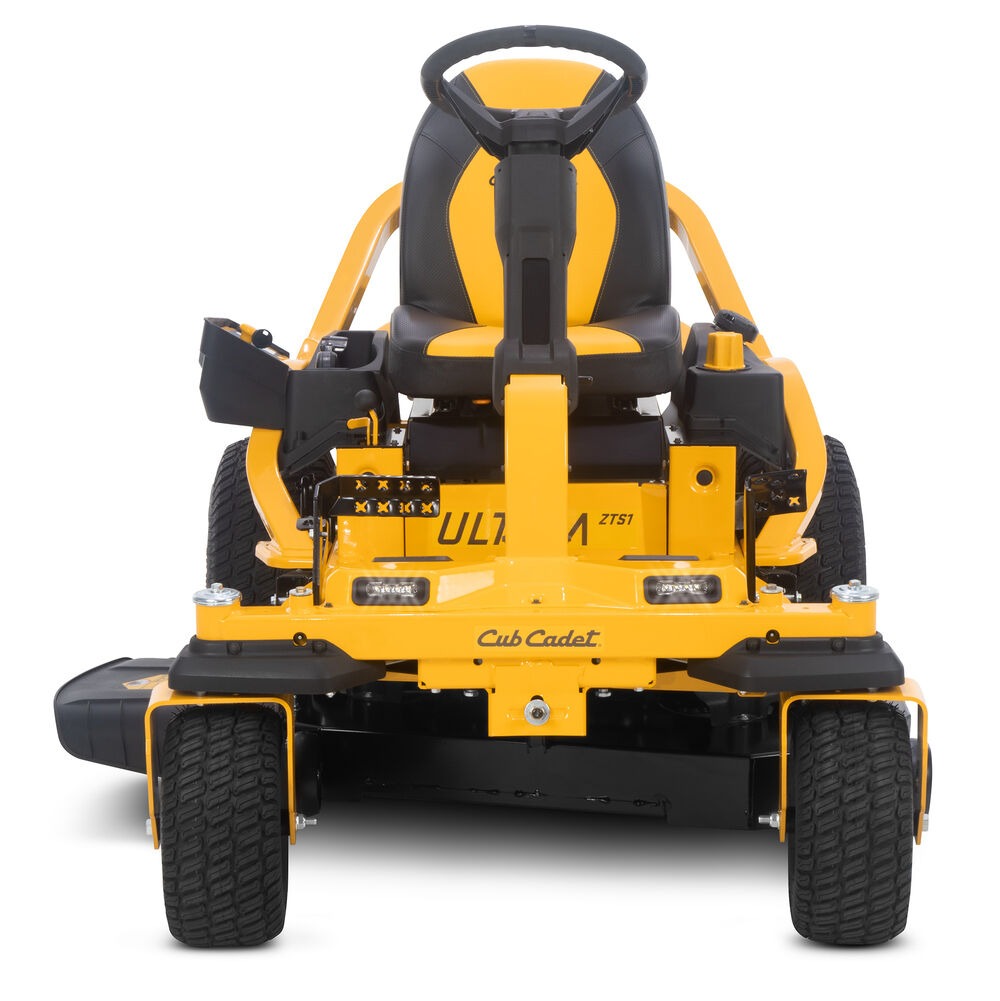

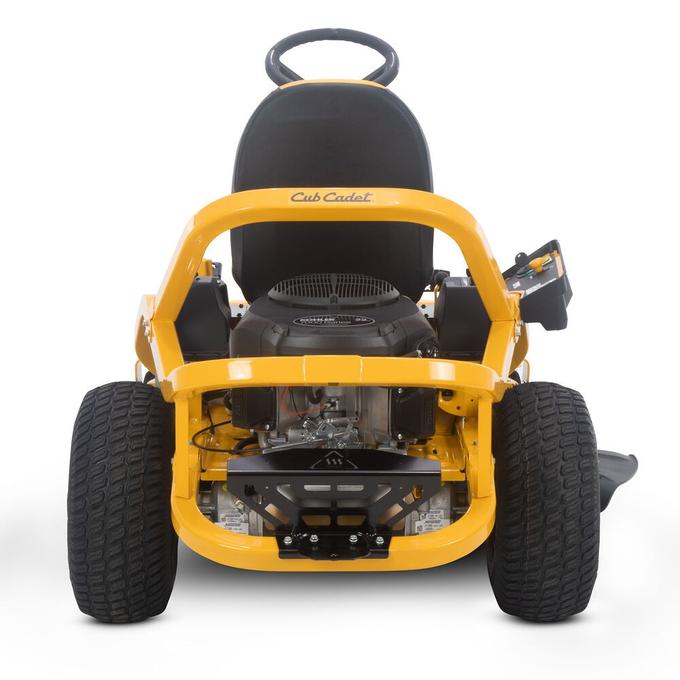

Cub Cadet® Ultima Series ZTS1 42 - 42" Zero-Turn Lawn Mower with Synchro-Steer™

The Cub Cadet® Ultima Series ZTS1 42 is a compact yet powerful zero-turn mower, designed to provide maximum maneuverability and unmatched stability on slopes up to 20 degrees. Featuring Synchro-Steer™ 4-wheel control and a 22 HP*/747cc Kohler engine, it combines speed, comfort, and precision. Its 42-inch AeroForce™ fabricated deck ensures a clean, even cut with fewer clumps, stragglers, or rework—delivering a professional-quality finish every time.

• 22 HP*/747cc Kohler® 7000 Series V-twin OHV engine ensures reliable, quiet power
• Synchro-Steer™ technology enables 4-wheel steering for better control on hills and slopes
• Dual hydrostatic transmissions provide speeds up to 7 MPH forward / 3.5 MPH reverse
• 42-in. AeroForce™ fabricated steel deck provides superior cut quality and durability
• 2" x 2" tubular steel frame with corrosion protection offers lasting structural strength

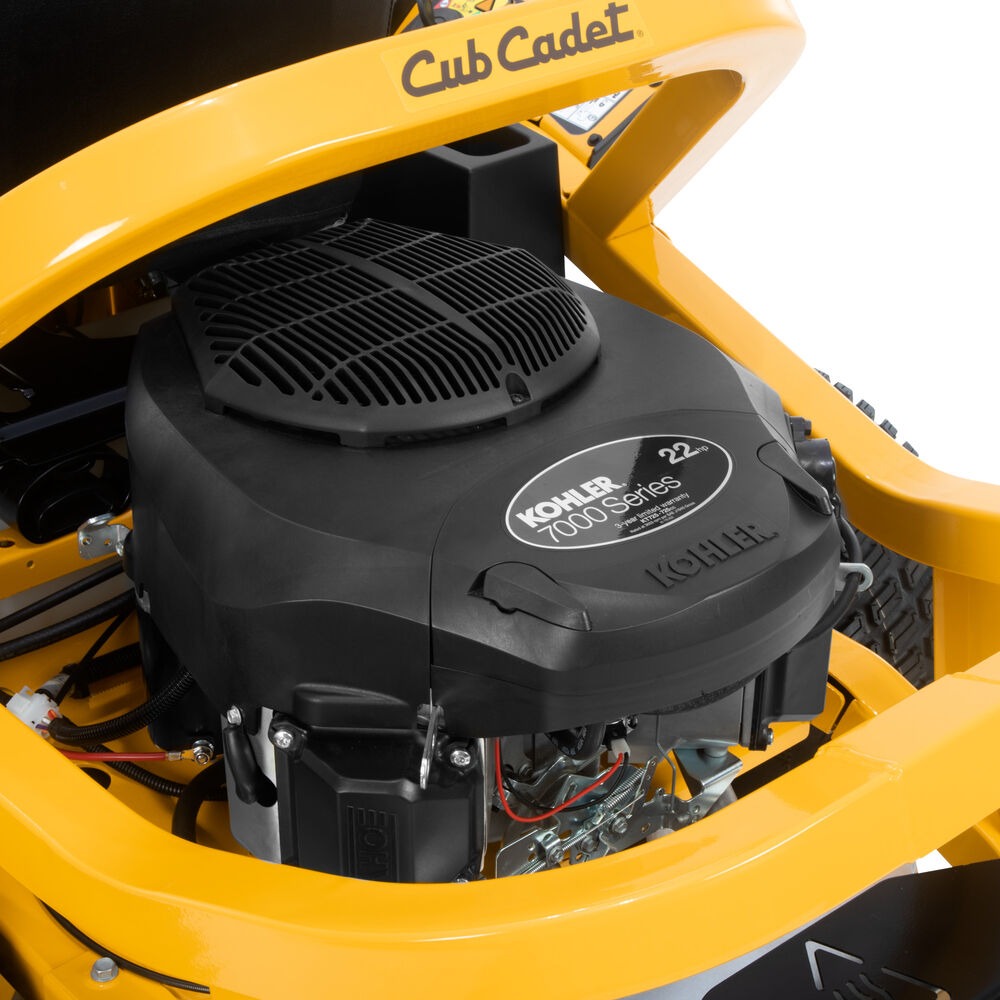

Engine

• Brand: Kohler®
• Model: 7000 Series (KT722)
• Displacement: 747cc
• Output: 22 HP*
• Starter: Electric (Ignition Key)
• Fuel Tank Capacity: 3.5 gal. (13.25 L)
• Oil Capacity: 2.0 qt. (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Air Filter: Dual element
• Fuel Delivery: Carburetor
• Choke: Separate
• Governor: Mechanical

Battery

• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V
• CCA: 210 CCA

Drive System

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH (11.3 km/h)
• Reverse Speed: 3.5 MPH (5.6 km/h)
• Drive Type: Hydrostatic

Cutting Deck

• Cutting Width: 42 in.
• Material: 11-gauge steel
• Construction: Fabricated
• Blades: 2
• Deck Engagement: Electric PTO
• Deck Lift: Foot pedal with dial adjust
• Cutting Height: 1" - 4.5"
• Anti-Scalping Wheels: 2 gauge wheels
• Deck Positions: 15
• Deck Wash: No

Chassis

• Frame: 2" x 2" tubular steel
• Turning Radius: 0° (Zero-Turn)
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes (e-coated)

Controls

• Brakes: Disc
• Steering: Steering Wheel (Synchro-Steer™)
• Cruise Control: No

Comfort

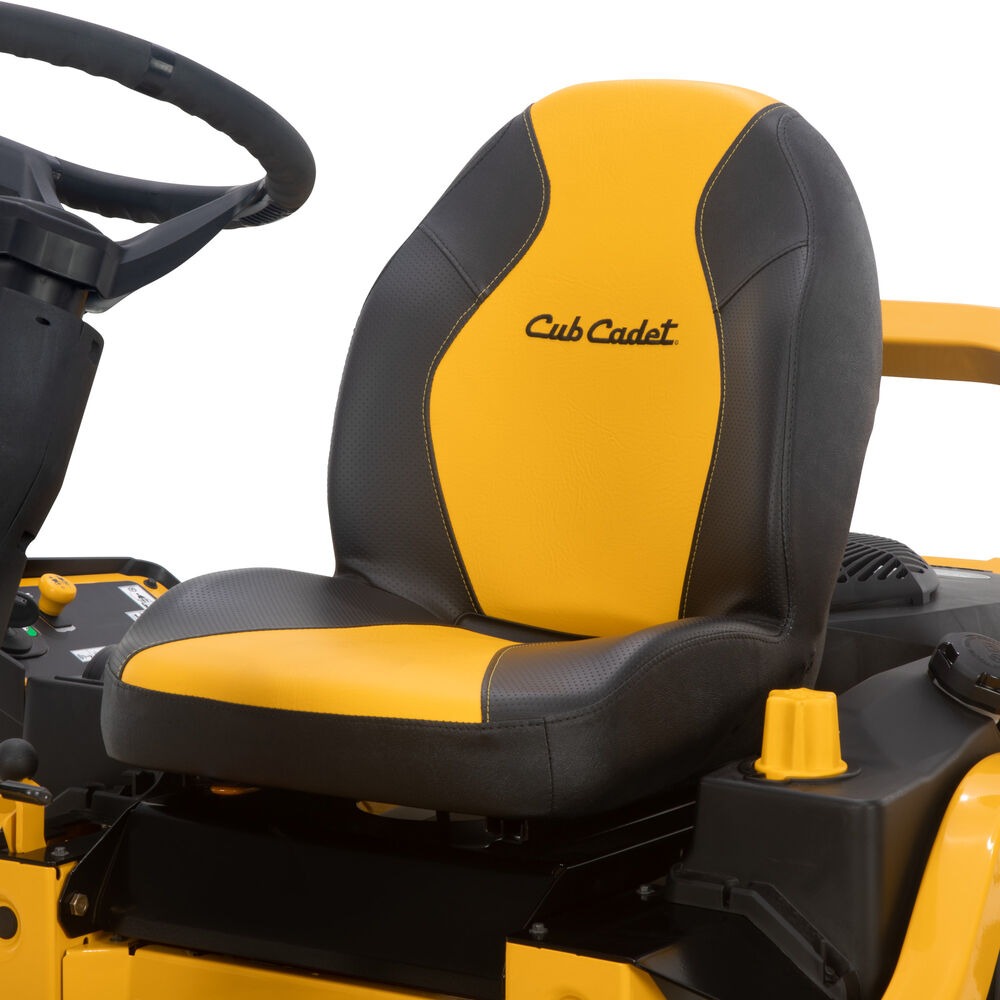

• Seat: 20" high-back
• Armrests: No
• Adjustment: Lever
• Front Caster Suspension: No

Wheels

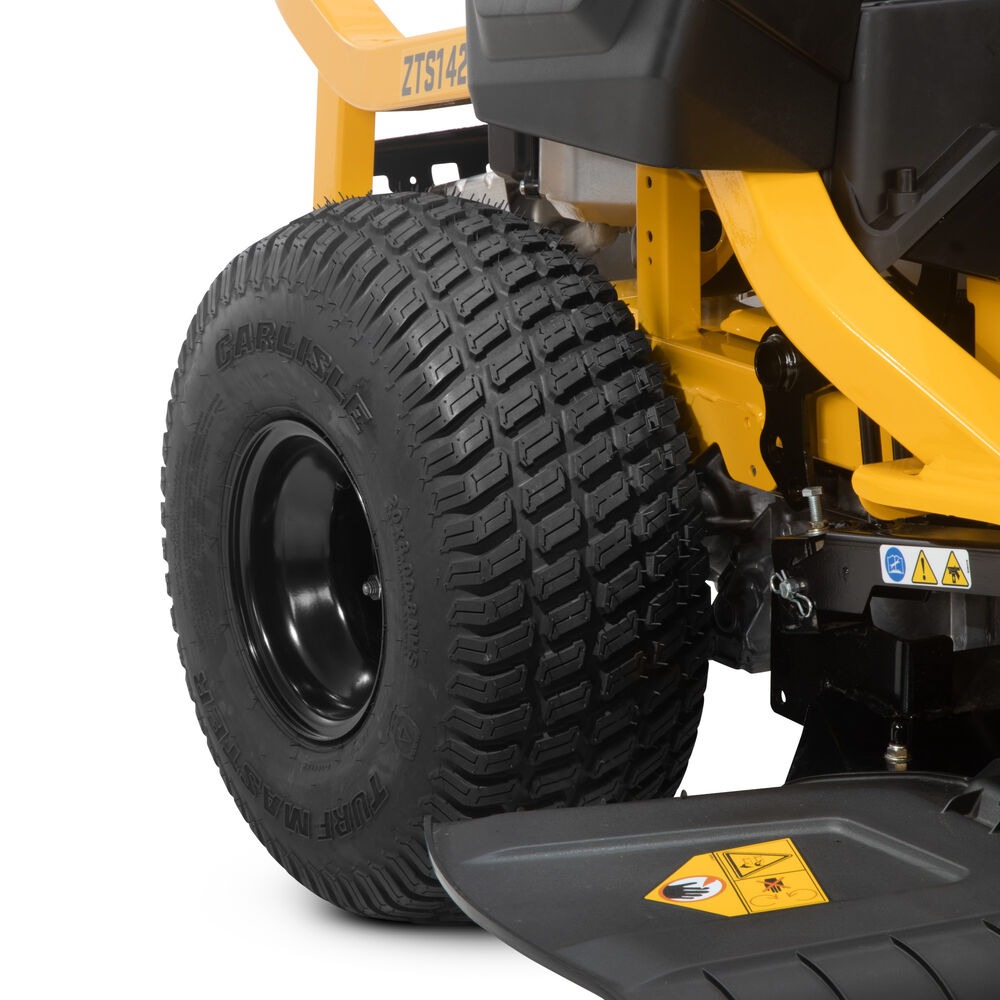

• Rear Tires: 20"x 8"-8"
• Front Tires: 13"x 6.5"-6"
• Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTS
• Hour Meter: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever
• Model Number: 17ARGBYEA10

Warranty

• Residential: 3-year unlimited hours
• Frame: Lifetime Limited
• Deck Shell: Lifetime Limited
• Commercial: Not covered

Disclaimers

Specifications are subject to change without notice or obligation. Product images and descriptions are for demonstration purposes and may vary from the actual product. *As rated by Kohler®, power levels are stated in gross horsepower at 3600 RPM per SAE J1940.
